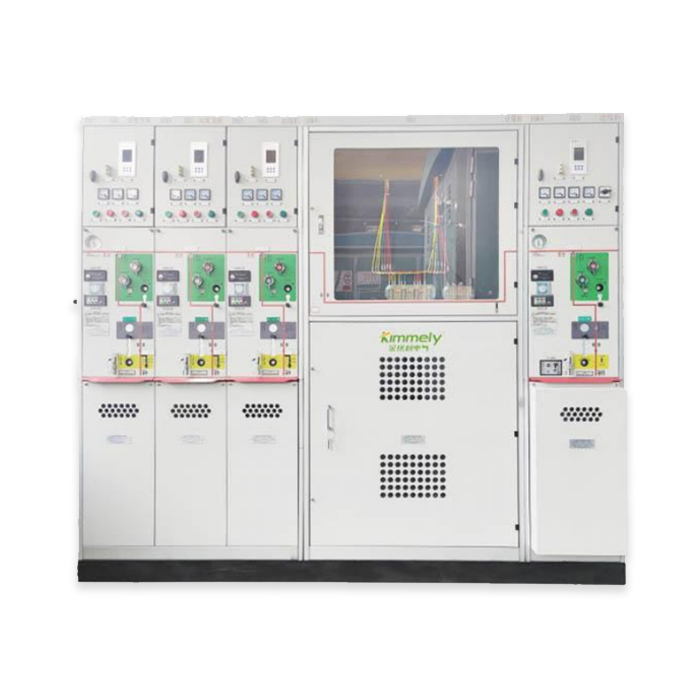

Indoor AC metal closed ring switchgear

WeChat
Sina Weibo
QQ
QQ space
Douban
Baidu Post Bar
Type HXG N-121125-31.5
Allowable operating ambient（℃） -15 ~ +40
Rated operating voltage（KV） 12
Rated frequency（HZ） 16、20、25、31.5、40、50
Rated peak withstand curre（KA） 63
IP Grade（IP） The housing is IP4X and the circuit breaker room door is IP2X when opened
Request
Detail

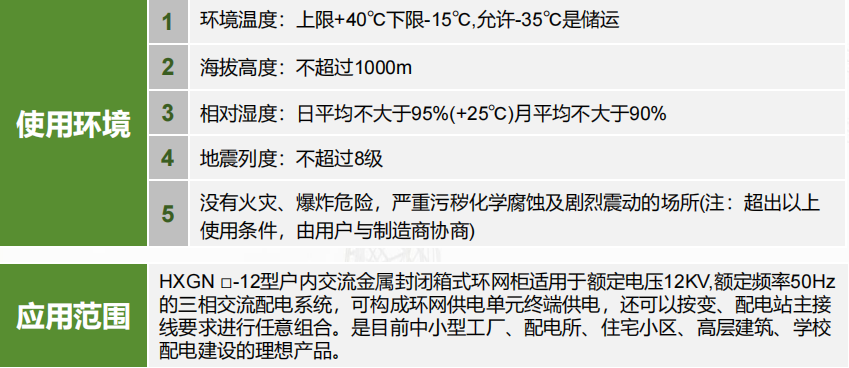

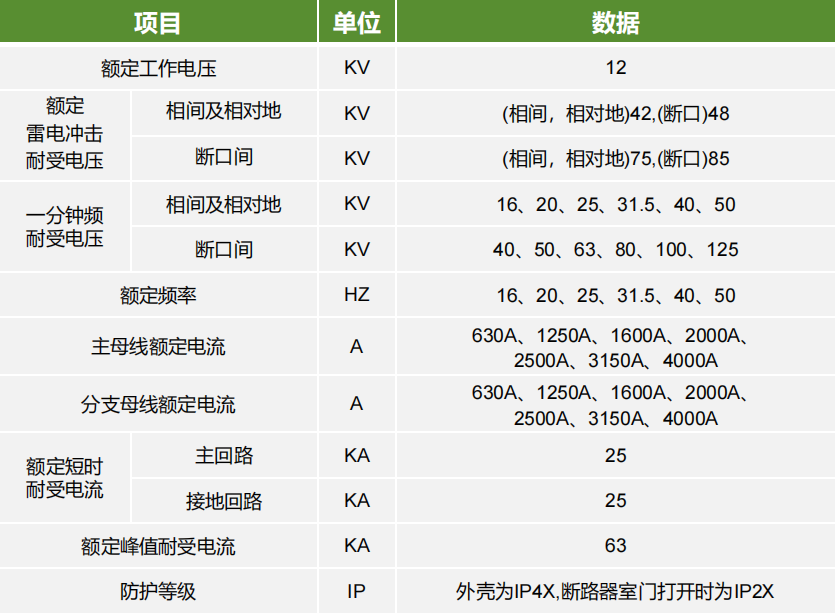

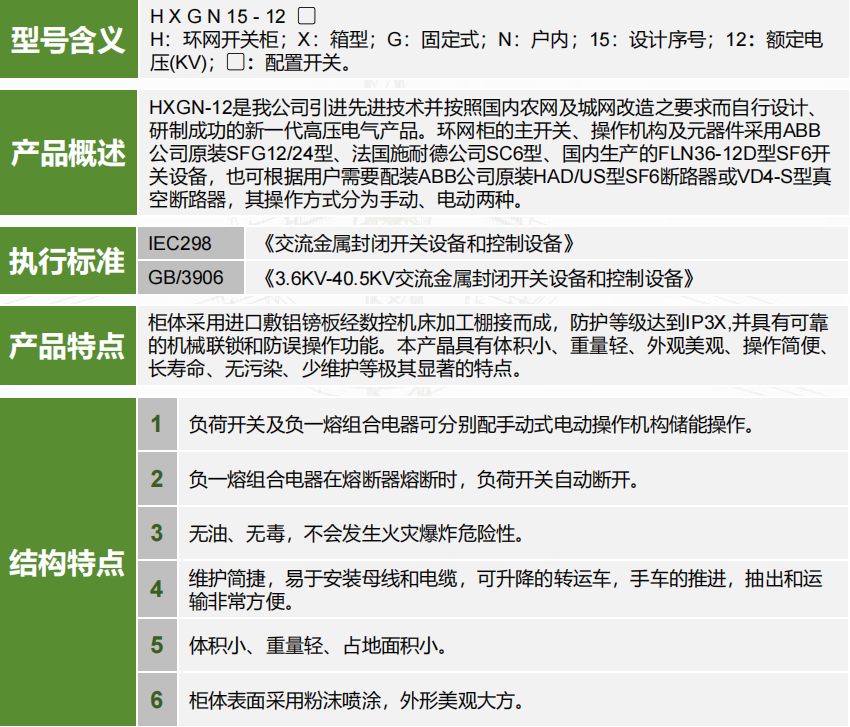

主要技术参数
